CUN Series Injection Molding Machines


Multi-purpose injection molding equipment optimally suited for the plastics injection molding

Multi-purpose injection molding equipment optimally suited for the plastics injection molding
  • The minimum maintenance and service costs, combined with an attractive price, make the machines of this series the most demanded on the market.
  • Reliable and efficient servo drive with low response time saves up to 60% of the energy.
Clamping unit
  • Columns of the clamping unit are made of steel with high wear resistance and uniform distribution of tensile force;
  • Optimized 5-point high-speed toggle clamping mechanism with increased cylinder travel and leverage. The size of the plates and the distance between the columns have been increased to use the equipment with increased dimensions;
  • Effective mold protection system guarantees their safety when an obstacle is detected during clamping;
  • An integrated hydraulic circuit designed for each unit and equipped with a standard logic valve operates without delays.

Injection unit
  • High travel speed with even force distribution on the screw ensures high injection stability.
  • Multi-stage adjustment of pressure and injection speed provides for the manufacture of complex products;
  • The screw and the cylinder have a nitride coating, which increases their durability. The machine is equipped with a safety system that prevents a "cold start" scenario and protects the screw from breaking.
  • Testing equipment before buying
  • Turnkey delivery and start-up
  • Prompt solution of technical issues by phone
  • Personnel training, warranty support, post-warranty service and repair
  • Acquisition of equipment through leasing

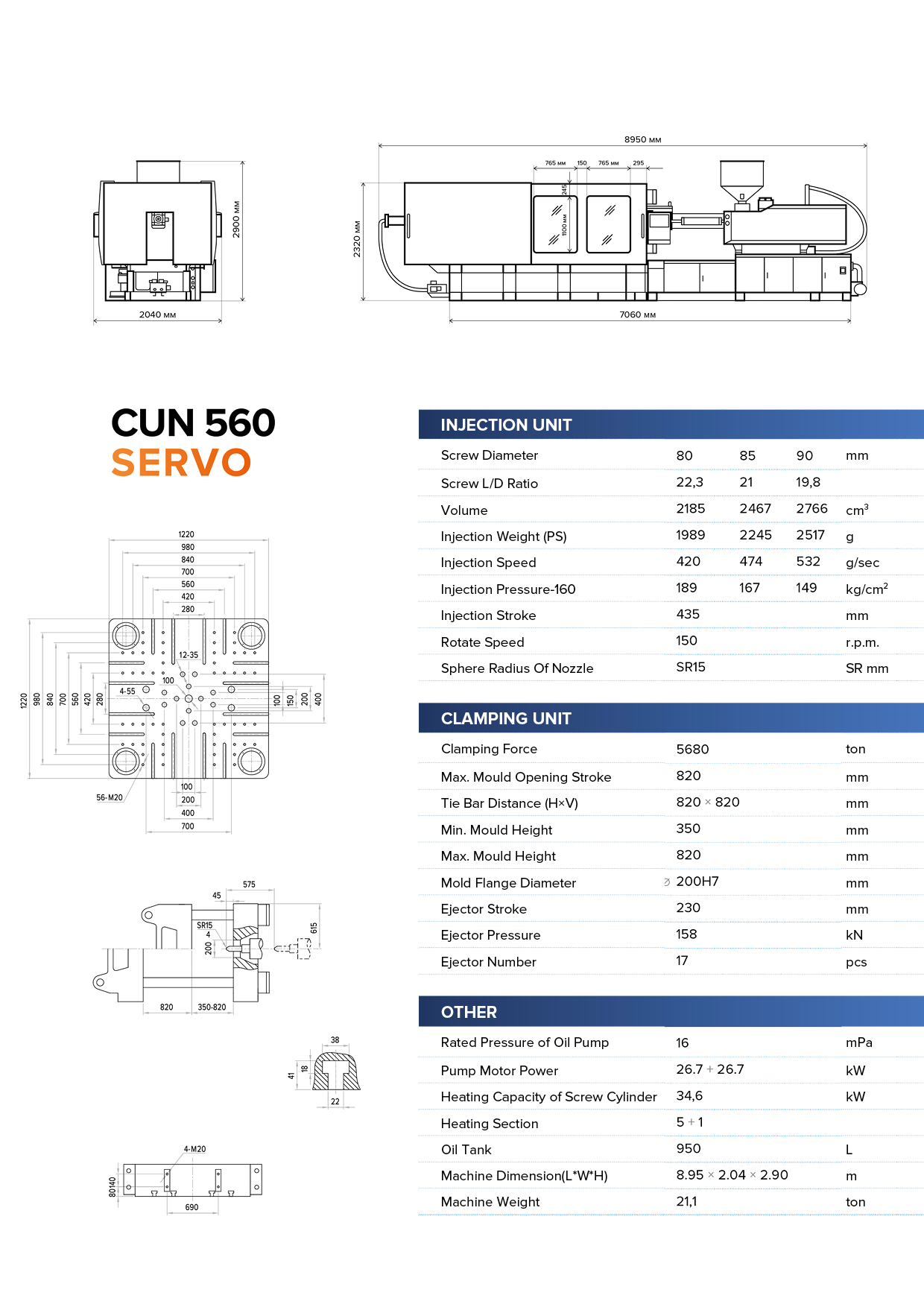

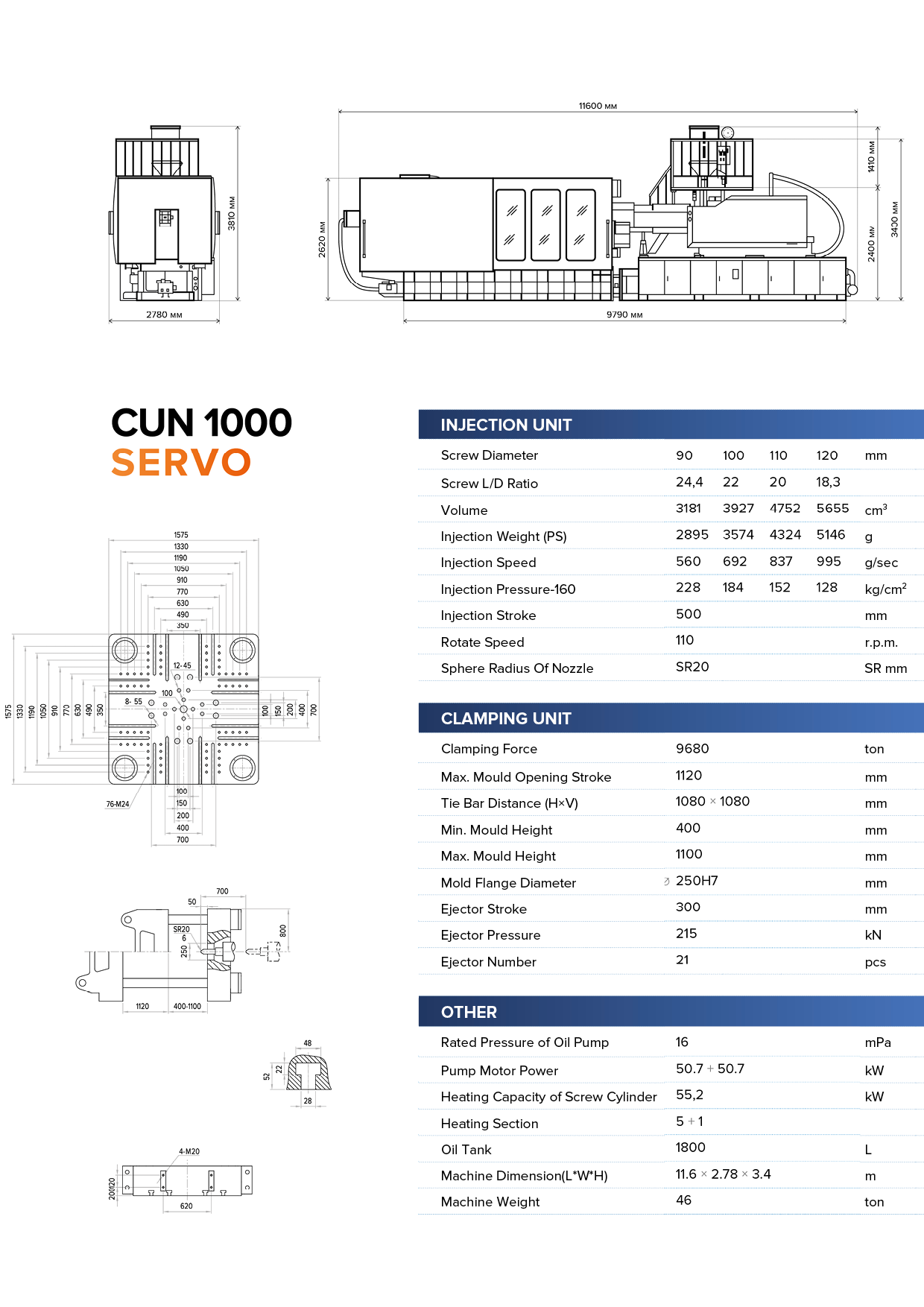

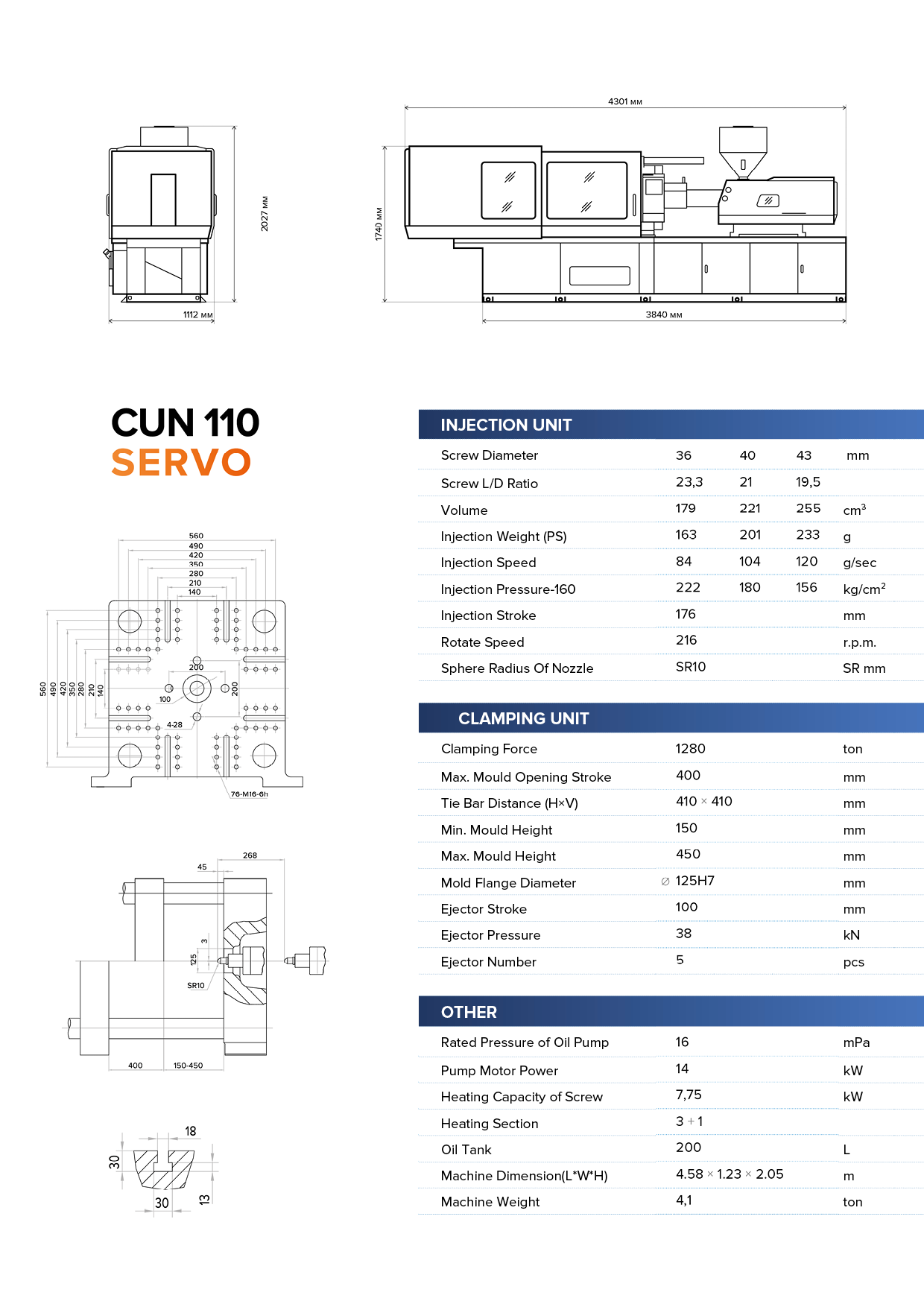

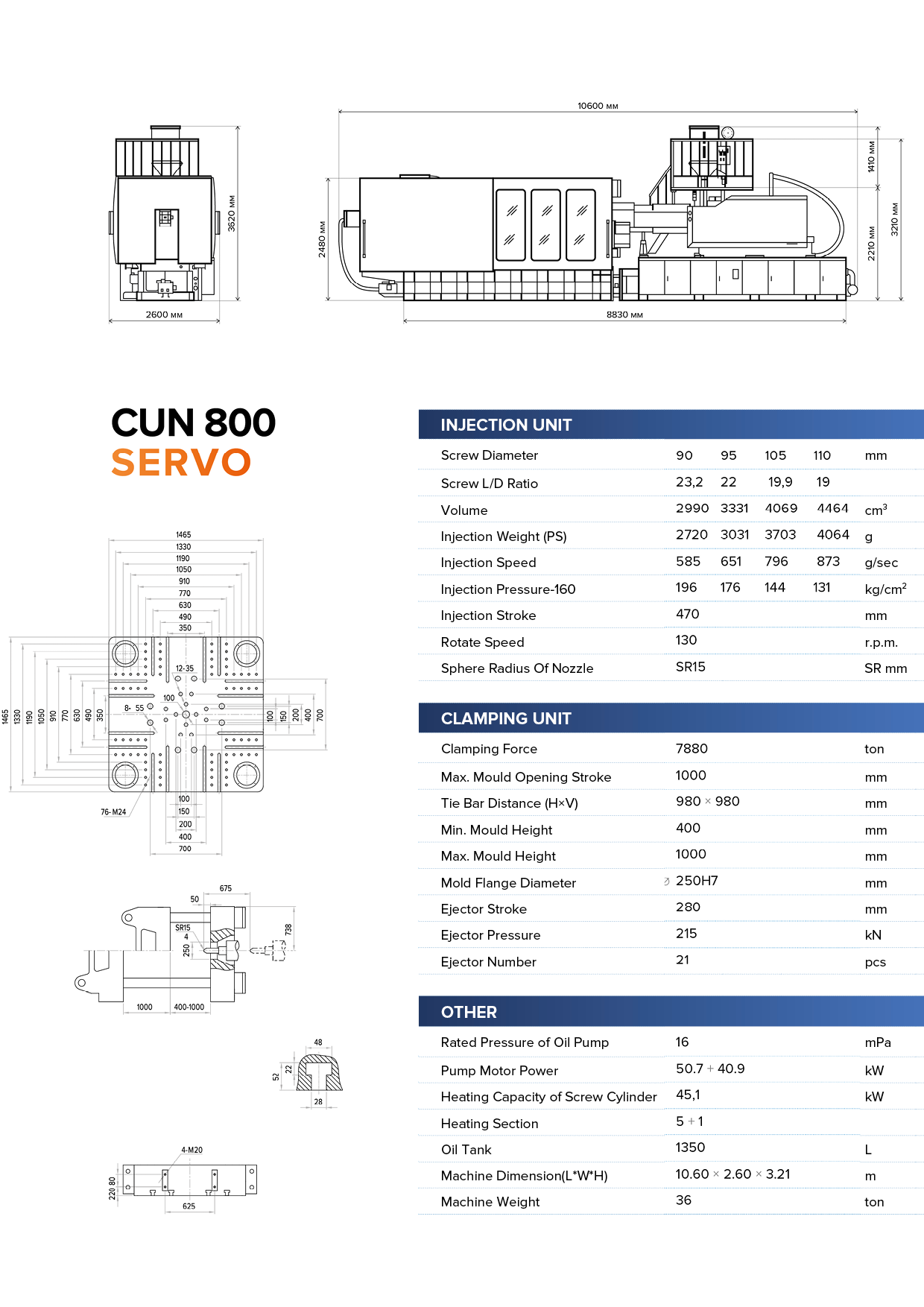

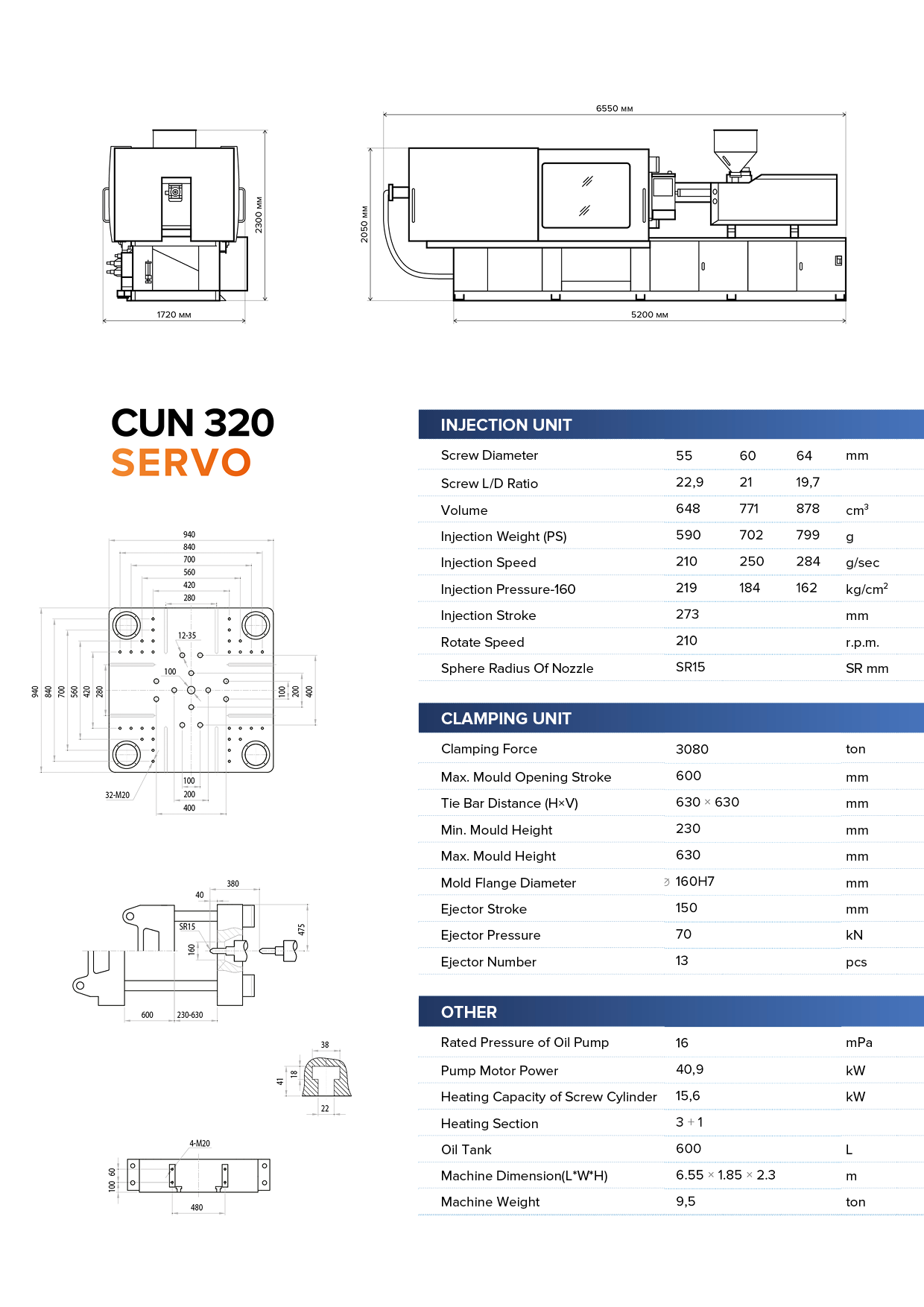

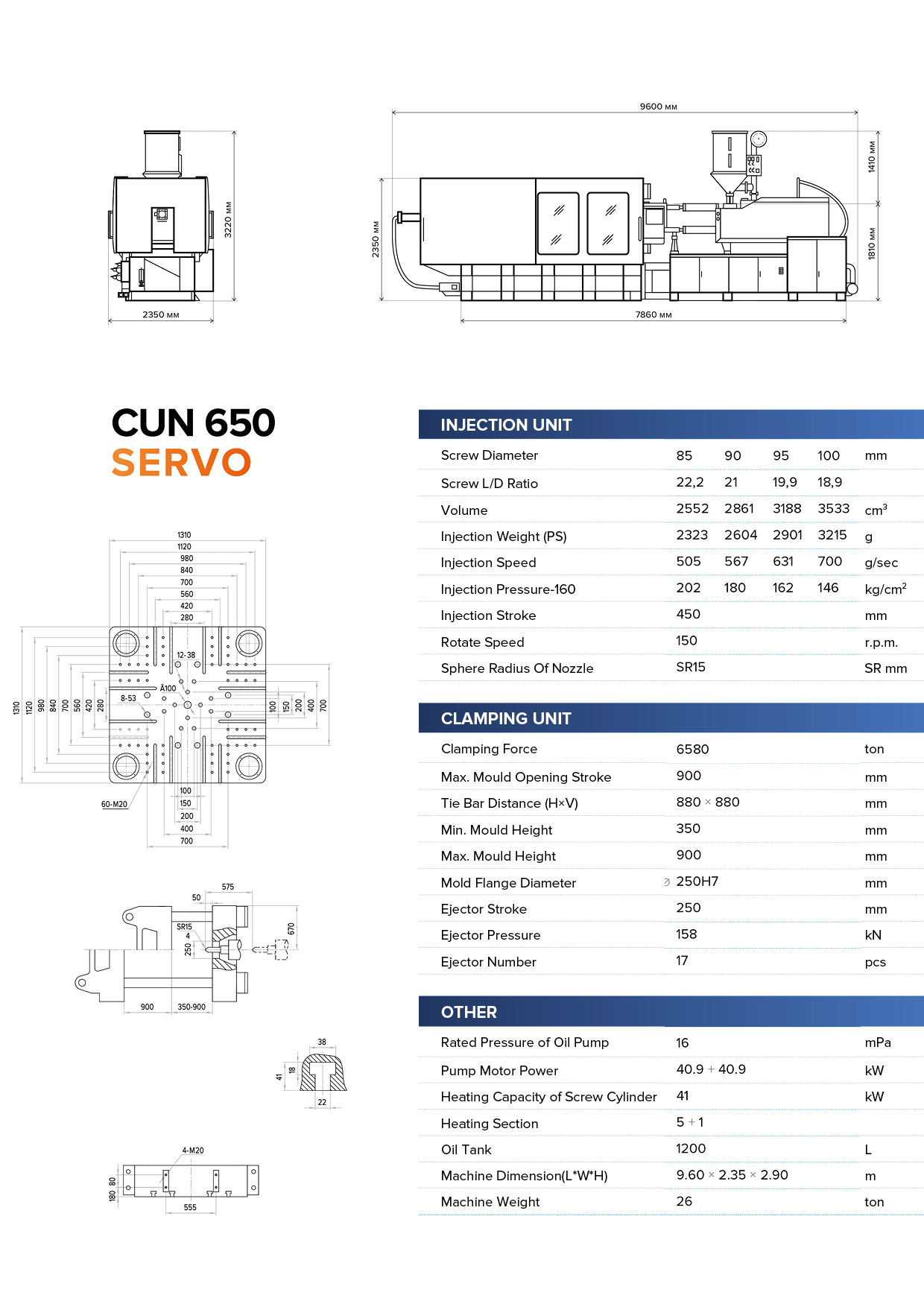

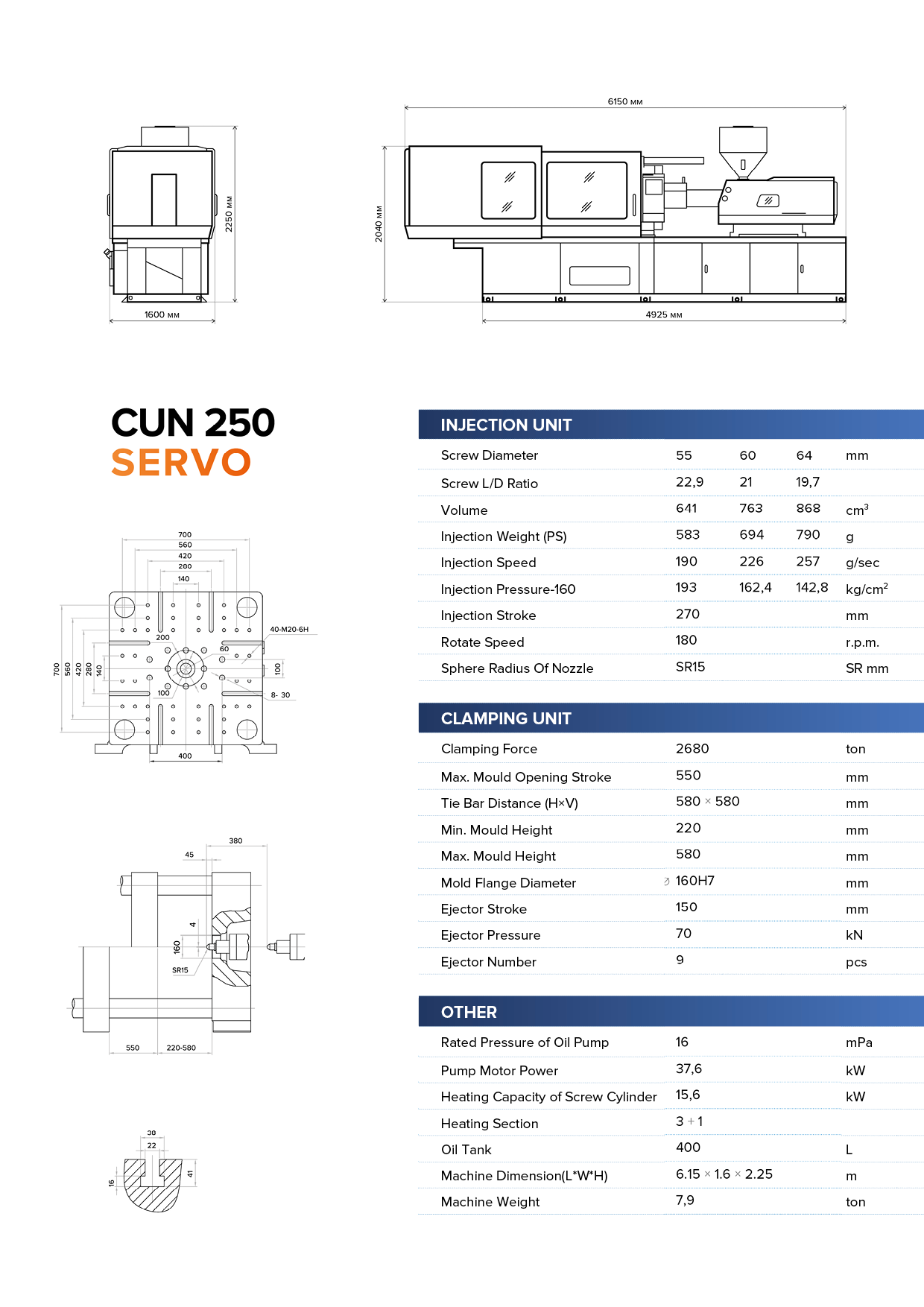

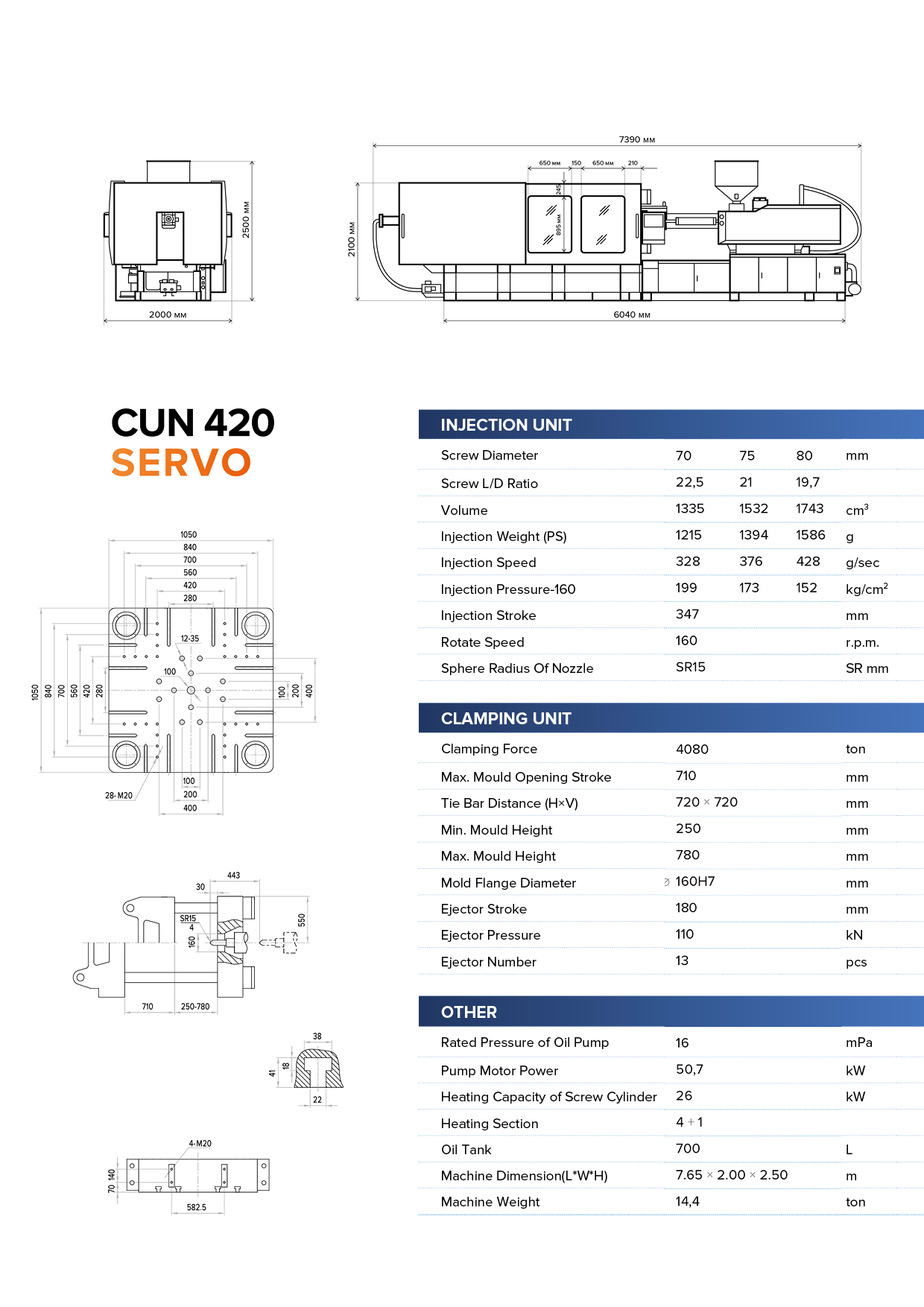

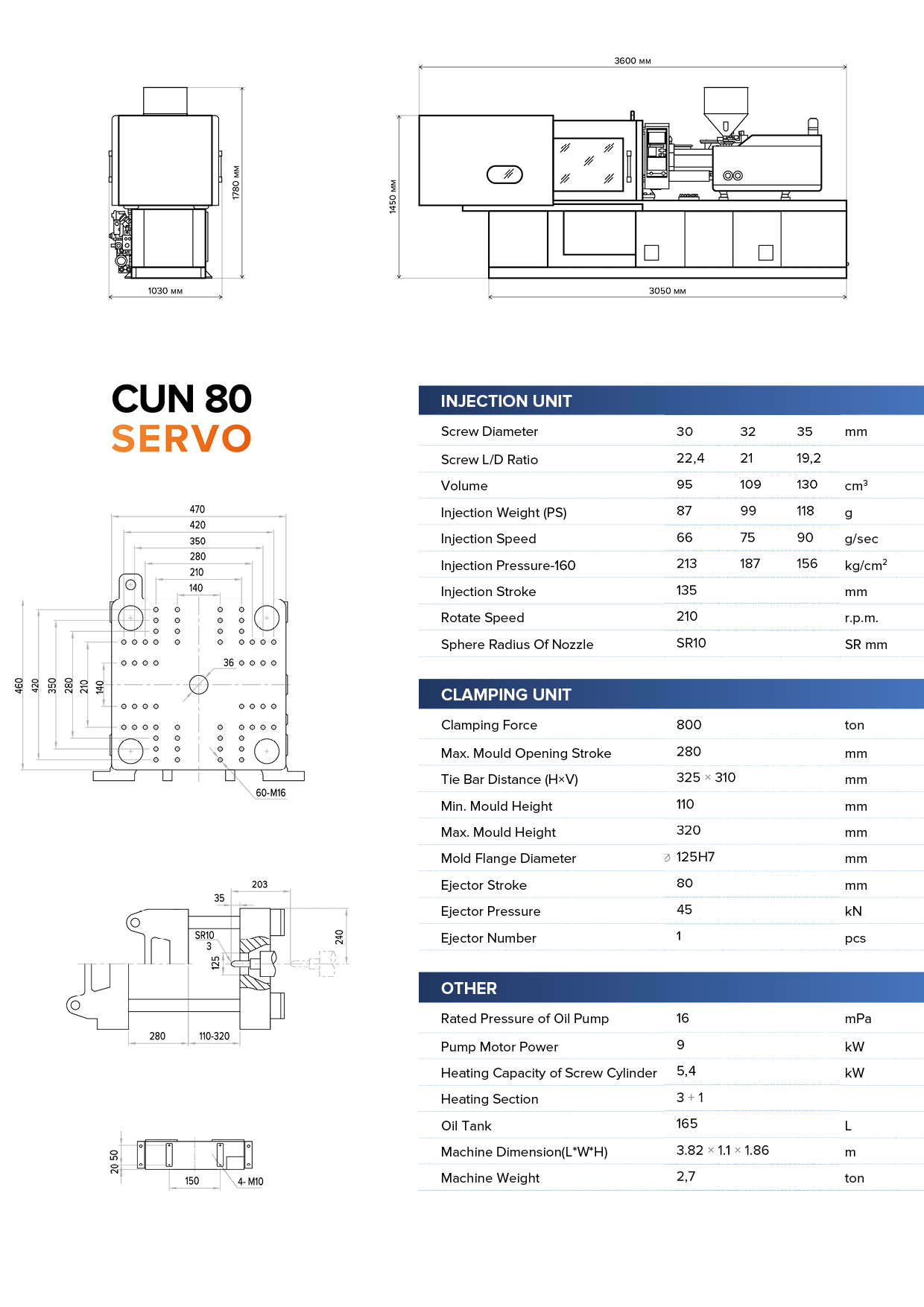

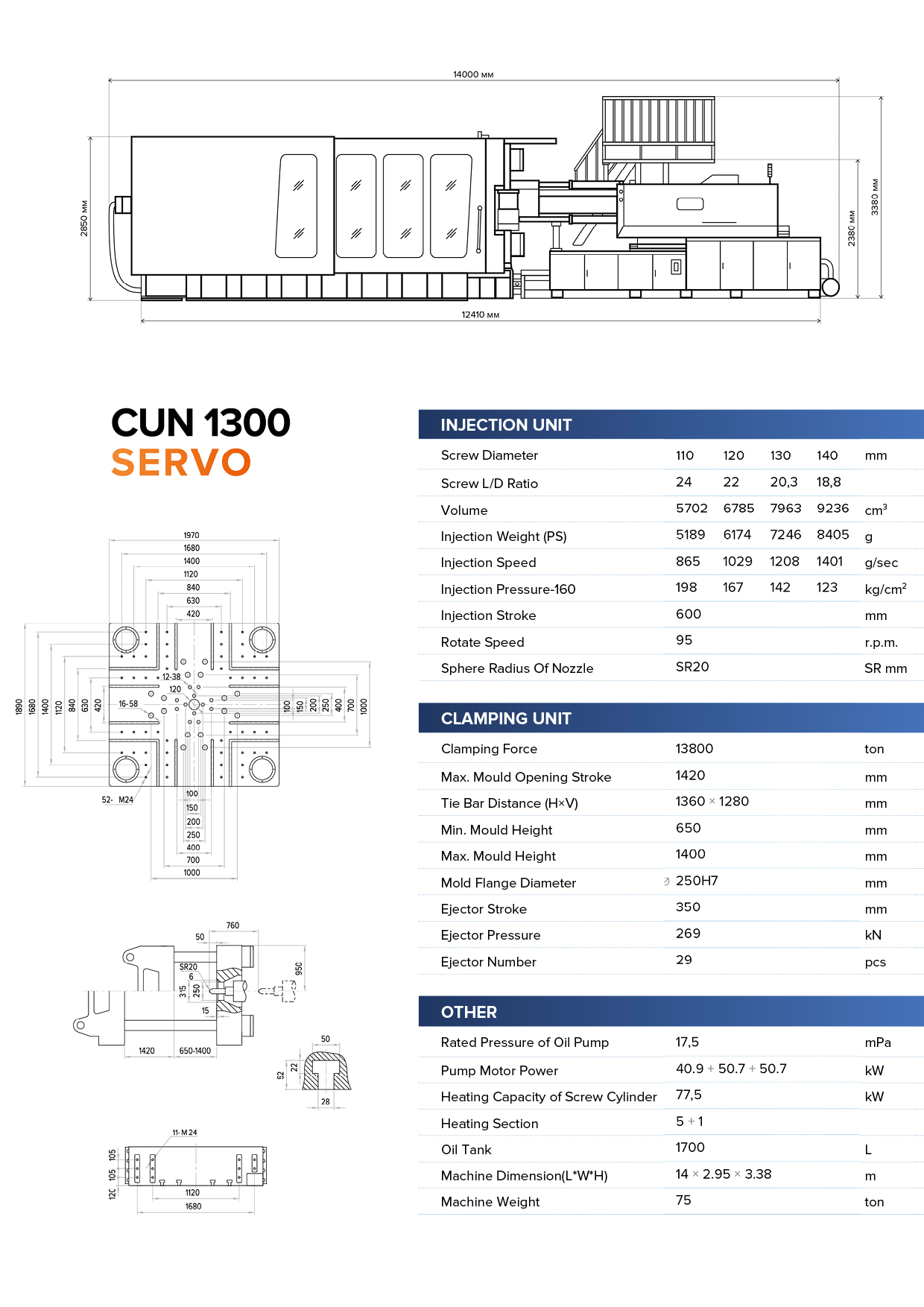

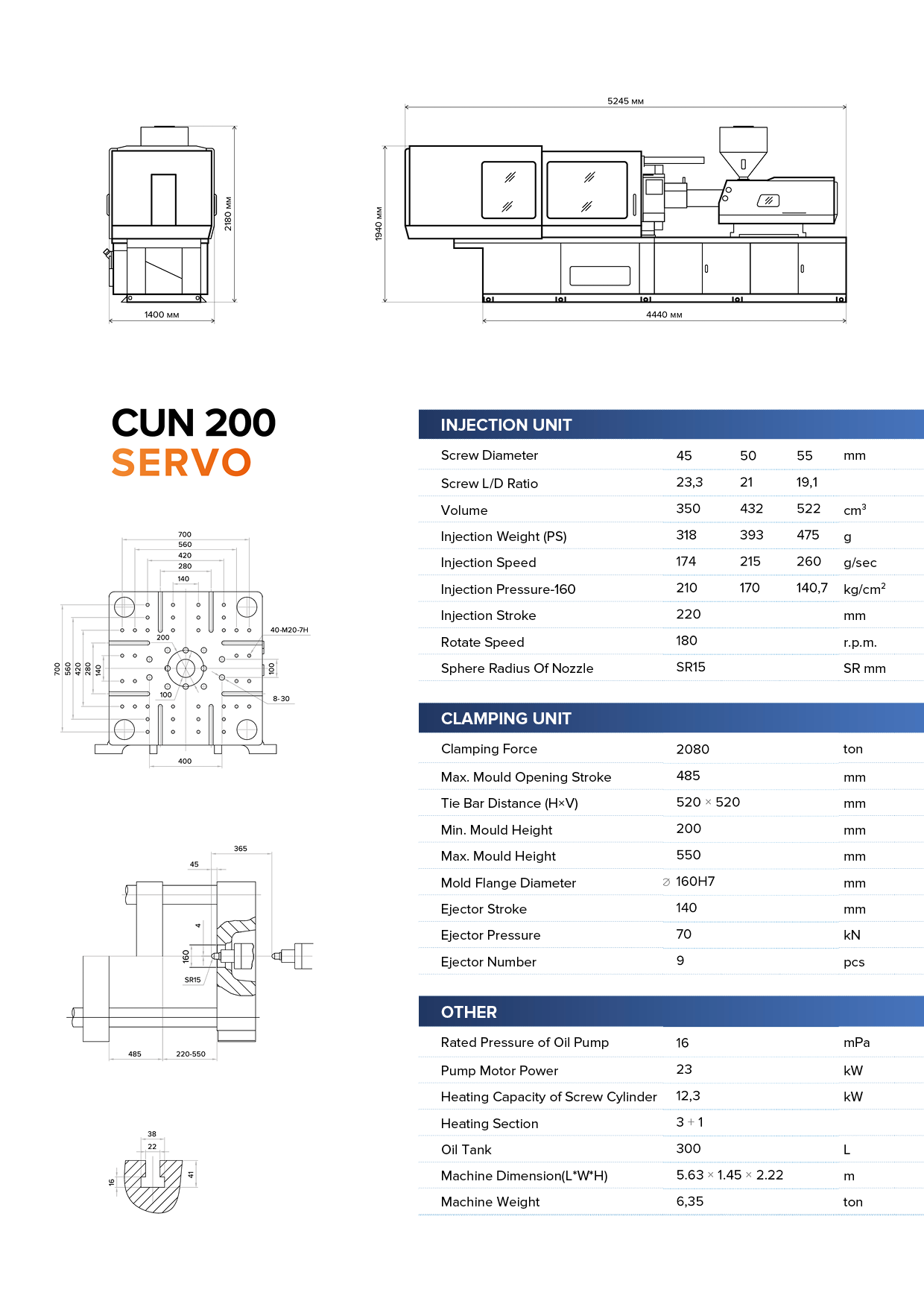

Specifications
Scroll through the gallery to see all specifications
